Описание

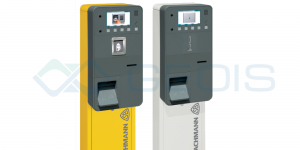

Контрольное устройство "entervo.passage" используется в качестве компактного устройства контроля транзитных и долговременных парковок.
Оно специально разработано для ситуаций, где нет необходимости выдавать или продавать бумажные билеты или чип-монеты.
Кодер TPU можно использовать для считывания магнитных билетов. Штрих-кодовые носители (1D парковочные билеты или электронные электронные билеты) удерживаются перед сканером подвески на передней панели. Модуль для обработки ChipCoins может быть интегрирован.
Также могут быть обработаны несколько близкодействующих и широкополосных транспондеров, в зависимости от Оборудования. Устройство предназначено для работы за пределами автомобиля и подходит для установки как снаружи, так и внутри.

User Guidance:
• Brilliant LED colour display for simple operation
• Screen diagonal of 17.8 cm (7“), screen resolution: WVGA (800x640 pixels)
• Intuitive user guidance via clear, graphic symbols
• Intercom substation with call button, microphone and loudspeaker (8 Ω)
• 4 additional push-buttons for flexible use
• Audio induction loop as option
Media Processing:
• Flexible equipment options for processing the following media:
• Standard barcode tickets (1D) via front facing barcode scanner
• 2D barcodes via front facing barcode scanner
• Magnetic tickets via TPU coder (reading only, no printing)
• Chip coins via integrated chip coin component (like entervo.exit)
• Scheidt & Bachmann Transponder Cards (Hitag read/write) via Elatec TWN4
• Scheidt & Bachmann Smart Cards (Mifare 1 K read/write)
• Mifare, HID cards via Elatec TWN4 (read-only operation)
• Kathrein long range UHF reader
Computer and Control Unit:
• Industrial PC for the autonomous control of the device
• Basic functions of the device are maintained even when there is a network failure
• 8 available digital inputs, 8 available digital outputs
External Connections:
• Power Supply, Network (LAN), Intercom, S&B barrier gate,
2 Induction loops
Power Supply:
• 100-240VAC ±10% / 50-60Hz
Power Consumption (approx.):
• 35 W / 50 VA; additional 500 W for heating
Housing:
• Stainless steel housing with smooth paint (RAL 9016 / traffic white or RAL 1003 / signal yellow)
• Special colours according to RAL are available as an option
• Device door with cylinder lock. After opening the device door, the front panel can be unlocked.
• Plastic front panel with structural effect paint (RAL 7043 / traffic grey B) can be swivelled to the side
Place of Installation:
• For indoor and outdoor use
• Temperature Range: -20 °C ... +50 °C
• Relative Humidity: ±0 % ... 95 % (non-condensing)
Weight:
• Approx. 45 kg
Approvals and Conformity:
• USA/Canada: NRTL approval is in preparation
